Shot blasting tank hi shot blasting (sandblasting) hmanrua atana thil pawimawh ber a ni. A bul berah chuan abrasives (steel shot, ceramic sand, glass beads, etc. ang chi) dahkhawmna atana hman thin pressure vessel a ni a, compressed air hnathawh hnuaiah chuan accelerate leh directionally spray abrasives chu workpiece chung lamah a spray a ni.
A hnuaia tarlan te hi shot blasting tank structure leh hman dan chipchiar taka tarlan a ni.
I. Shot blasting tank structure .
Shot blasting tank te hi an hnathawh dan principle a zirin chi hnih ah an then ber a, chungte chu pressurized type (direct pressure type) leh ejection type (suction leh delivery type) te an ni. Pressurized shot blasting tank hi industry-ah hman a ni nasa hle a, performance a chak zawk a, efficiency a sang zawk bawk. Hetah hian pressurized shot blasting tank structure chu a rawn lut ber a ni.
Typical pressurized shot blasting tank system hi a bul berah chuan a bulpui ber pathum a awm a, chungte chu tank system, control system, leh auxiliary system te an ni.
1. Tank system (core pressure vessel .

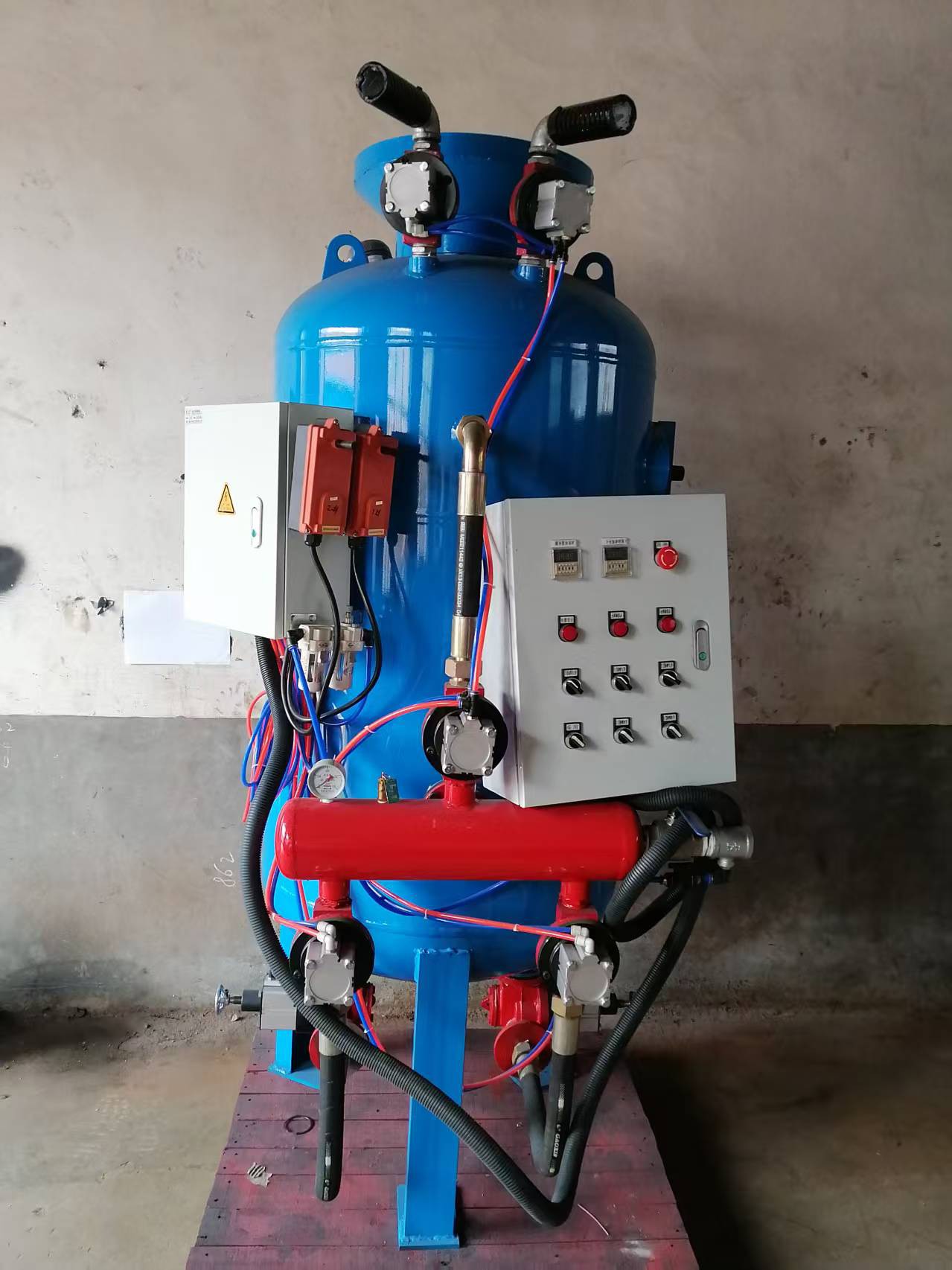

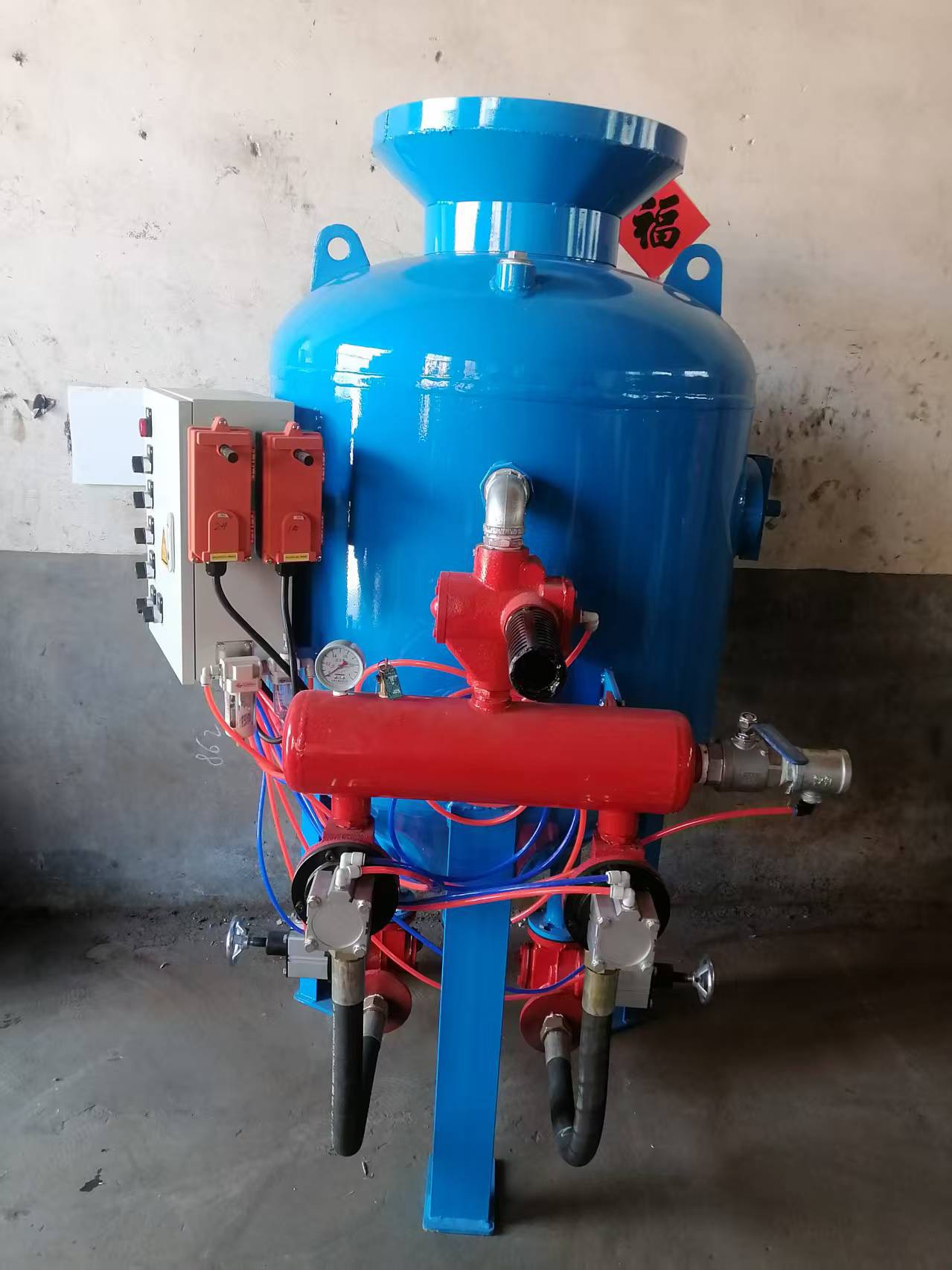

Tank Taksa: Taksa ber chu strictly designed pressure-resistant steel container a ni a, chu chu a tlangpuiin chi hnih a awm a, chungte chu vertical leh horizontal a ni. A chungah chuan feeding port leh sealing cover a awm bawk.
Abrasive valve: Tank hnuai lam outlet-ah awmin, sandblasting pipeline chhunga abrasive luang lut tur control nan key component a ni. A tlangpuiin butterfly valve, ball valve emaw, a bik taka siam needle valve emaw a ni.
Mixing Chamber: Abrasives hi high-speed compressed air nen an pawlh a, hetah hian. Abrasive valve hnuaiah a awm tlangpui a, abrasive chu "sucked in" emaw "pushed into" emaw airflow a ni.
Venturi tube (ejection nozzle) : Design thenkhatah chuan mixing chamber hian venturi structure a hmang a, chu chuan high-speed airflow atanga negative pressure siam chu a hmang a, chu chuan abrasive chu tank atanga a chhuah theih nan a ti awlsam zawk a ni.
2. Control System (Hriselna leh Hman Dan Enkawlna) .
Intake valve: Compressed air chu tank chhunga lut tur control tu main valve. A tlangpuiin kawng hnih-ah then a ni:
Top Pressurized Pipeline: Tank chung lamah boruak a lut a, abrasive-ah chuan hnuai lam pressure a pe a.
Sandblasting pipeline: Air hian direct-in mixing chamber-ah a hruai a, high-speed jet airflow a siam a ni.
Exhaust valve/pressure reducing valve: Hna thawh tur tihtawp emaw, abrasives thar dah belh a ngaih hunah tank chhunga pressure him taka chhuah tir nan hman a ni.
Level Gauge: Tank chhunga abrasive awm zat chu tank a khar loh nan emaw, a khat lutuk emaw a nih loh nan a enfiah thin.
Safety Valve/Rupture Disc: Safety device pawimawh tak, tank chhunga pressure a san chuan abnormally a sang a nih chuan a puak lo thei ang bera a chhuah chuan automatic-in pressure a pe chhuak thin.
Electrical Control System: Remote on/off, automatic feeding leh pressure regulation neih theihna turin button, remote control, sensor, etc. te a inzawm khawm a.
3. Auxiliary system 1.1.
Sandblasting hose: Hose bik, pressure resistance sang leh wear resistance nei, mixing chamber leh spray gun inzawmkhawm.
Spray Gun: Operator-in a vawn emaw, mechanical hand-a clamp emaw, a chhunga awm, abrasive jet chu a ti chak lehzual a, a chhungah ceramic emaw tungsten carbide nozzle emaw hmanga siam a ni.
Abrasive recovery and separation system (closed shot blasting room-ah) : Ground grilles, screw conveyor, elevator, cyclone separator leh vibrating screens, etc. te a awm a, chungte chu recover, clean reusable abrasives leh leivut leh bawlhhlawh paih chhuahna atan hman a ni.
Dust Removal System: Large-scale cartridge dust collectors hmangin shot blasting laiin leivut lo chhuak chu an khawl khawm a, hnathawhna hmun thianghlim taka vawn leh boruak humhalhna mamawh phuhruk nan an hmang thin.
II a ni. Shot blasting tank hman dan tur .
Shot peening technology hian high-speed abrasive flow hmangin workpiece chunglam a nghawng a, chu chuan industrial purpose hrang hrang a thlen thei a ni. A hmanna ber field-ah chuan:
Surface tihchakna/shot peening tihchakna .
Hei hi hmanna hlu ber a ni. Abrasives te tak te chhiar sen lohin a nghawng dan hian, residual compressive stress layer chu metal parts (gears, springs, aero engine blades, connecting rods, etc. ang chi) chunglamah a rawn lut a, chu chuan fatigue strength, stress corrosion resistance leh service life te chu nasa takin a tichak a ni. Hei hi aircraft siamna, automotive engine siamna, leh high-load transmission components siamna kawnga thil pawimawh tak a ni.
2. Lei chung tihfai .
Rust leh Oxide Scale Removal: Rust layer leh rolled oxide scale chu steel plate, steel structure, lawng leh storage tank chunglam atanga painting atana inbuatsaihna atan la chhuak rawh.
Cleaning Cast/Forged/Welded Parts: Casting atanga molding sand, forging atanga oxide scale, coating leh weld seam atanga spatter te chu la chhuak rawh.
Coating hlui te chu paih chhuak rawh: Paint leh coating hlawhchham te chu a siam that leh theih nan efficient takin peel off rawh.
3. Lei chung lama enkawlna (surface pretreatment) .
Spray (painting, thermal spraying), bonding emaw electroplating emaw hmain workpiece chunglam chu a chung lam a tisang a, coating/adhesive adhesion a tichak thei a ni. Anchor pattern siam chu coating quality atan a pawimawh hle.
4. A chung lam roughening/decoration .
Roughening Treatment: Uniform siam tur chuan a chung lamah matte finish (stainless steel brushed effect emaw, bronze wares tar tawh emaw ang chi) siam tur chuan.
Decorative texture: lung emaw glass emaw a engraving pattern emaw thumal emaw.
5. Stress relief leh shaping .
Stress relief: Welding emaw mechanical processing hnua local stress tihbo nan hman a ni.
Shot Peening: Aerospace industry-ah chuan thlawhna lian tak tak wing skin ang chi complex curved surface siamna atan hman a ni. Selective shot peening hmangin sheet metal hian controllable plastic deformation a paltlang a.
iii a ni. Shot blasting tank chi hrang hrang thlan chhuah .
Direct Pressure Shot Blasting Tank: A chunga kan sawi tawh ang khan abrasive hi tank chhungah pressurized a ni a, chutah chuan discharge a ni. Efficiency sang tak, spraying force chak tak, workpiece lian tak tak tan pawha tha, rust tihfai leh tihchakna process nasa tak, industry-a mainstream a ni.
Ejector (Suction Type) Shot Blasting Machine: Abrasive tank chu pressure pangngaiah a awm a, abrasive chu spray gun-a venturi effect atanga negative pressure lo chhuak chuan a suck out chauh a ni. Thil hmanrua chu a awlsam a, a rit lo va, a hniam-cost a, mahse a efficiency leh power erawh a hniam hle thung. Workpiece te, thin-layer tihfai nan emaw, lei chung lama chhiatna mamawhna a hniamna hmun emaw atan a tha hle.
Khaihtawi
Core pressure system angin material storage, pressurization leh conveying te inzawmkhawmin, shot peening tank design stability leh safety hian shot peening operation efficiency leh quality a tichiang nghal vek a ni. A hman dan hi tunlai thil siamchhuahnaa key link tam tak hmangin a kal a, basic cleaning leh rust removal atanga high-end anti-fatigue strengthening thlengin a kal a ni. Industrial product-te rintlakna, a chhe thei lo leh an thawh theihna tihpunna atana hmanraw pawimawh tak a ni. Shot blasting tank chi leh parameter dik tak thlan hi process goal beisei ang tihhlawhtlinna atan a pawimawh hle.
